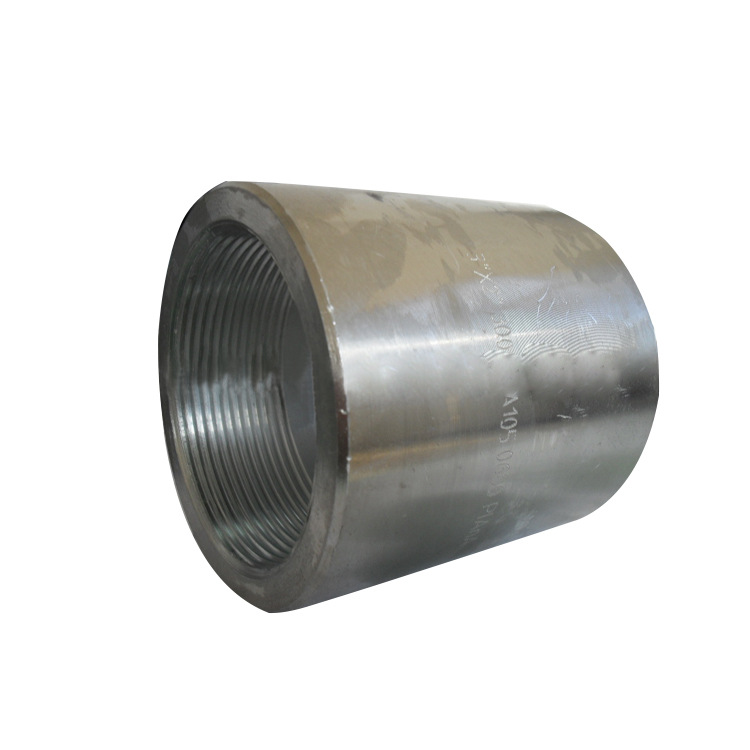

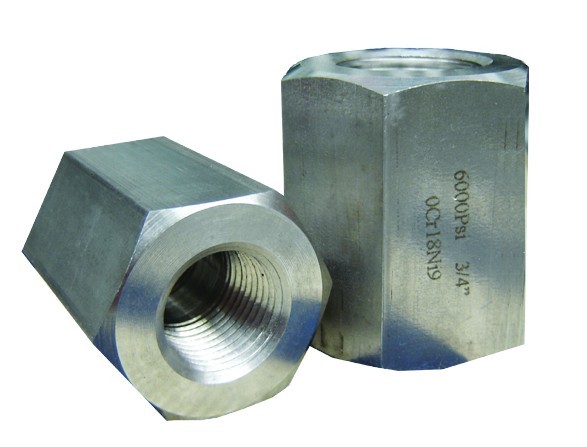

螺紋管箍 管帽COUPLING
單頭螺紋管箍 |
雙頭螺紋管箍 |
螺紋管帽 |
 |
 |
 |
名 稱：螺紋管件/Threaded Pipefittings
規(guī) 格：DN6~DN100 (1/8"~4")
壓 力：SCH40,SCH80,SCH160,XS,XXS,2000LB,3000LB,6000LB
材 質(zhì)：碳鋼(CS)、 不銹鋼(SS)、 合金鋼(AS)
類 型：彎頭、內(nèi)外絲彎頭、三通、四通、管箍、活接頭、管帽、斜三通、堵頭、外絲、內(nèi)絲、補芯、以及各類異形非標接頭
工 藝：鋸切、熱處理、模鍛、機加工
標 準：ASMEB16.11、GB/T14383-2008、MSS SP-83、BS3799
|
公稱通徑
Nominal Diameter
|
管箍、管帽長度
The Length of Coupling and Cap
|
外徑 |
管帽頂厚 |
螺紋長度 |
|||||||
|
E |
F |
D |
Cmin |
||||||||
|
DN |
NPS |
3000LB |
6000LB |
3000LB |
6000LB |
3000LB |
6000LB |
3000LB |
6000LB |
B |
L2 |
|
Sch160 |
XXS |
Sch160 |
XXS |
Sch160 |
XXS |
Sch160 |
XXS |
||||
|
6 |
1/8 |
32 |
32 |
19 |
- |
16 |
22 |
5.0 |
- |
6.5 |
6.5 |
|
8 |
1/4 |
35 |
35 |
25 |
27 |
19 |
25 |
5.0 |
6.5 |
8.0 |
10.0 |
|
10 |
3/8 |
38 |
38 |
25 |
27 |
22 |
32 |
5.0 |
6.5 |
9.0 |
10.5 |
|
15 |
1/2 |
48 |
48 |
32 |
33 |
29 |
38 |
6.5 |
8.0 |
11.0 |
13.5 |
|
20 |
3/4 |
51 |
51 |
37 |
38 |
35 |
44 |
6.5 |
8.0 |
12.5 |
14.0 |
|
25 |
1 |
60 |
60 |
41 |
43 |
44 |
57 |
9.5 |
11.0 |
14.5 |
17.5 |
|
32 |
1.1/4 |
67 |
67 |
44 |
46 |
57 |
64 |
9.5 |
11.0 |
17.0 |
18.0 |
|
40 |
1.1/2 |
76 |
76 |
44 |
48 |
64 |
76 |
11.0 |
12.5 |
18.0 |
18.5 |
|
50 |
2 |
86 |
86 |
48 |
51 |
76 |
92 |
12.5 |
16.0 |
19.0 |
19.0 |
|
65 |
2.1/2 |
92 |
92 |
60 |
64 |
92 |
108 |
16.0 |
19.0 |
23.5 |
29.0 |
|
80 |
3 |
108 |
108 |
65 |
68 |
108 |
127 |
19.0 |
22.0 |
26.0 |
30.5 |
|
100 |
4 |
121 |
121 |
68 |
75 |
140 |
159 |
22.0 |
28.5 |
27.5 |
33.0 |
