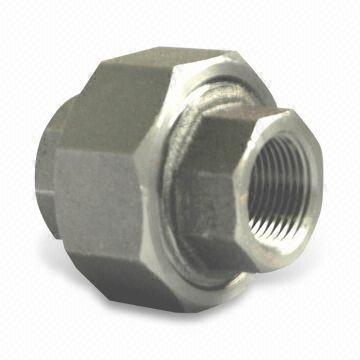

活接UNION
名 稱：螺紋管件/Threaded Pipefittings
規 格：DN6~DN100 (1/8"~4")
壓 力：SCH40,SCH80,SCH160,XS,XXS,2000LB,3000LB,6000LB
材 質：碳鋼(CS)、 不銹鋼(SS)、 合金鋼(AS)
類 型：彎頭、內外絲彎頭、三通、四通、管箍、活接頭、管帽、斜三通、堵頭、外絲、內絲、補芯、以及各類異形非標接頭
工 藝：鋸切、熱處理、模鍛、機加工
標 準：ASMEB16.11、GB/T14383-2008、MSS SP-83、BS3799
|
承插活接頭 |
螺紋活接頭 |
|
|
|
公稱通徑 |
外徑 |
壁厚 |
承插孔徑 |
流通孔徑 |
承插孔深度 |
公稱裝配長度 |
|||
|
Dmin |
Cmin |
d1 |
d2 |
min |
L |
||||
|
A |
B(in) |
承插焊 |
螺紋 |
承插焊 |
螺紋 |
承插焊 |
承插焊、螺紋 |
承插焊 |
承插焊、螺紋 |
|
6 |
1/8 |
21.8 |
14.7 |
3.2 |
2.5 |
10.65 |
6.43 |
10 |
41.4 |
|
8 |
1/4 |
21.8 |
19.0 |
3.3 |
3.1 |
14.10 |
9.45 |
10 |
41.4 |
|
10 |
3/8 |
25.9 |
22.9 |
3.5 |
3.2 |
17.55 |
13.51 |
10 |
46.0 |
|
15 |
1/2 |
31.2 |
27.7 |
4.1 |
3.8 |
21.70 |
17.07 |
10 |
49.0 |
|
20 |
3/4 |
37.1 |
33.5 |
4.3 |
4.0 |
27.05 |
21.39 |
13 |
56.9 |
|
25 |
1 |
45.5 |
41.4 |
5.0 |
4.6 |
33.80 |
27.74 |
13 |
62.0 |
|
32 |
11/4 |
54.9 |
50.5 |
5.3 |
4.9 |
42.55 |
35.36 |
13 |
71.1 |
|
40 |
11/2 |
61.5 |
57.2 |
5.6 |
5.1 |
48.65 |
41.20 |
13 |
76.5 |
|
50 |
2 |
75.2 |
70.1 |
6.1 |
5.6 |
61.10 |
52.12 |
16 |
86.1 |
|
65 |
21/2 |
91.7 |
85.3 |
7.7 |
7.1 |
73.80 |
64.31 |
16 |
102.4 |
|
80 |
3 |
109.2 |
102.4 |
8.4 |
7.7 |
89.80 |
77.27 |
16 |
109.0 |
